泰豪电源

Power range：16-400kW Frequency：50Hz

Technical parameters of set						Technical parameters of engine
Model	Prime power	Standby power	Overall size Length (L)×Width (W)×Height (H)	Weight	Engine model	Number of cylinders/arrangement	Displacement	Fuel consumption rate	Lubricating oil capacity	Total coolant capacity
	Prime power	Standby power	Overall size Length (L)×Width (W)×Height (H)	Weight			Displacement	Fuel consumption rate	Lubricating oil capacity	Total coolant capacity
	(kW)	(kW)	mm	(Kg)			(L)	g/kw.h	(L)	(L)
THLC16	16	18	1900x798x1408	690	4B3.9-G11	4/L	3.9	236	11	19
THLC20	20	22	2000x798x1408	750	4B3.9-G2	4/L	3.9	229	11	19
THLC20	20	22	2025x797x1421	700	QSB3.9-G31	4/L	3.9	210	11	21
THLC24	24	26	2000x798x1408	780	4B3.9-G12	4/L	3.9	227	11	19
THLC30	30	33	2025x855x1398	780	4BT3.9-G2	4/L	3.9	214	11	19
THLC30	30	33	2025x797x1421	720	QSB3.9-G33	4/L	3.9	210	11	21
THLC45	45	50	2100x854x1431	1060	4BTA3.9-G2	4/L	3.9	213	11	22
THLC48	48	52	2579x870x1514	1050	QSB3.9-G2^*	4/L	3.9	230	11	27
THLC50	50	55	2100x730x1431	1055	4BTA3.9-G11	4/L	3.9	208	11	22
THLC50	50	55	2579x870x1514	1080	QSB3.9-G35	4/L	3.9	210	11	21
THLC60	60	66	2100x730x1431	1055	4BTA3.9-G11	4/L	3.9	208	11	22
THLC64	64	70	2579x870x1514	1080	QSB3.9-G3^*	4/L	3.9	214	11	27
THLC68	68	75	2436x815x1424	1200	6BT5.9-G2	6/L	5.9	214	16	22
THLC70	70	77	2579x870x1514	1100	QSB3.9-G37	4/L	3.9	203	11	25
THLC75	75	80	2436x815x1424	1200	4BTA3.9-G13	4/L	3.9	212	11	22
THLC75	75	80	2436x815x1424	1270	6BT5.9-G2	6/L	5.9	214	16	22
THLC80	80	88	2436x815x1424	1250	4BTAA3.9-G3	4/L	3.9	212	11	22
THLC80	80	88	2600x870x1514	1200	QSB3.9-G39	4/L	3.9	203	11	25
THLC80	80	88	2436x815x1424	1270	6BT5.9-G2	6/L	5.9	214	16	22
THLC80	80	88	2562x950x1593	1270	QSB5.9-G2^*	6/L	5.9	224	16	26
THLC90	90	100	2461x858x1502	1330	6BTA5.9-G2	6/L	5.9	211	16	26
THLC90	90	100	2562x950x1593	1300	QSB5.9-G30	6/L	5.9	205	16	30
THLC100	100	110	2563x867x1507	1200	6BTAA5.9-G2	6/L	5.9	208	16	26
THLC100	100	110	2562x950x1593	1300	QSB5.9-G31	6/L	5.9	205	16	30
THLC100	100	110	2562x950x1593	1300	QSB5.9-G3^*	6/L	5.9	215	16	26
THLC120	120	130	2618x899x1644	1380	6BTAA5.9-G12	6/L	5.9	203	16	26
THLC120	120	130	2562x950x1593	1400	QSB5.9-G33	6/L	5.9	205	16	30
THLC120	120	130	2442x870x1514	1700	QSB6.7-G3^*	6/L	6.7	208	20	42
THLC130	130	140	2352x1104x1358	1600	6CTA8.3-G2	6/L	8.3	212	28	31
THLC144	144	160	2537x1175x1626	1700	QSB6.7-G4^*	6/L	6.7	213	20	42
THLC145	145	160	2352x1104x1358	1600	6CTA8.3-G2	6/L	8.3	212	28	31
THLC150	150	165	2537x1175x1626	1700	QSB6.7-G32	6/L	6.7	201	20	37
THLC160	160	176	2450x1210x1458	1600	6CTAA8.3-G2	6/L	8.3	205	24	34
THLC160	160	176	2500x1429x1741	1785	QSL8.9-G2^*	6/L	8.9	219	28	57
THLC180	180	200	2590x1175x1626	1790	QSB6.7-G31	6/L	6.7	201	20	37
THLC180	180	200	2650x1140x1739	1800	QSL8.9-G3^*	6/L	8.9	213	28	57
THLC200	200	220	2562x1190x1715	1850	6LTAA8.9-G2	6/L	8.9	197	28	34
THLC200	200	220	2750x1140x1739	1900	QSL8.9-G34	6/L	8.9	201	28	58
THLC200	200	220	2750x1140x1739	1900	QSL8.9-G4^*	6/L	8.9	210	28	57
THLC216	216	240	2916x1212x1741	2580	6LTAA9.5-G3	6/L	9.5	193	28	34
THLC220	220	240	2850x1140x1739	2100	QSL8.9-G33	6/L	8.9	201	28	58
THLC260	260	280	2916x1212x1741	2580	6LTAA9.5-G1	6/L	9.5	199	28	34
THLC260	260	280	2900x1140x1739	2400	QSL8.9-G30	6/L	8.9	196	28	58
THLC288	288	320	3228x1492x2106	3000	QSZ13-G6^*	6/L	13	214	75	78
THLC310	310	340	3612x1508x2021	2590	6ZTAA13-G3	6/L	13	189	45	78
THLC320	320	350	3228x1492x2106	3110	QSZ13-G7^*	6/L	13	209	75	78
THLC350	350	385	3162x1508x2021	3280	6ZTAA13-G4	6/L	13	192	45	78
THLC350	350	385	3100x1492x2030	3180	QSZ13-G2	6/L	13	191	45	78
THLC360	360	400	3257x1492x2175	3180	QSZ13-G5	6/L	13	195	75	78
THLC380	380	420	3257x1492x2175	3180	QSZ13-G3	6/L	13	193	45	78
THLC400	400	440	3257x1492x2175	3300	QSZ13-G10	6/L	13	191	78	86

Standard conditions: Ambient temperature: 40°C; Altitude: 1000m; Relative humidity: 60%

The engines marked with * meet the national stage-III emission standard

Power range：22-440KW Frequency：60Hz

Technical parameters of set						Technical parameters of engine
Model	Prime power	Standby power	Overall size Length (L)×Width (W)×Height (H)	Weight	Engine model	Number of cylinders/arrangement	Displacement	Fue lconsumption rate	Lubricating oil capacity	Total coolant capacity
	Prime power	Standby power	Overall size Length (L)×Width (W)×Height (H)	Weight			Displacement	Fue lconsumption rate	Lubricating oil capacity	Total coolant capacity
	(KW)	(KW)	mm	(Kg)			(L)	g/kw.h	(L)	(L)
THLC22	22	24	2000x798x1408	750	4B3.9-G2	4/L	3.9	238	11	19
THLC26	26	30	2000x798x1408	780	4B3.9-G12	4/L	3.9	235	11	19
THLC35	35	40	2025x855x1398	780	4BT3.9-G2	4/L	3.9	221	11	19
THLC52	52	57	2100x854x1431	1060	4BTA3.9-G2	4/L	3.9	219	11	22
THLC68	68	76	2100x730x1431	1055	4BTA3.9-G11	4/L	3.9	207	11	22
THLC84	84	92	2436x815x1424	1200	6BT5.9-G2	6/L	5.9	235	16	22
THLC105	105	116	2461x858x1502	1330	6BTA5.9-G2	6/L	5.9	211	16	26
THLC116	116	125	2563x867x1507	1200	6BTAA5.9-G2	6/L	5.9	212	16	26
THLC128	128	140	2618x899x1644	1380	6BTAA5.9-G12	6/L	5.9	208	16	26
THLC150	150	165	2352x1104x1358	1600	6CTA8.3-G2	6/L	8.3	213	28	31
THLC165	165	180	2450x1210x1458	1600	6CTAA8.3-G2	6/L	8.3	214	24	34
THLC208	208	228	2562x1190x1715	1850	6LTAA8.9-G2	6/L	8.9	208	28	34
THLC220	220	242	2562x1190x1715	1950	6LTAA8.9-G3	6/L	8.9	201	28	34
THLC250	250	275	2916x1212x1741	2580	6LTAA9.5-G1	6/L	9.5	199	28	34
THLC310	310	340	3612x1508x2021	2600	6ZTAA13-G3	6/L	13	200	45	78
THLC310	310	340	3228x1492x2106	3100	QSZ13-G6	6/L	13	212	75	78
THLC350	350	380	3162x1508x2021	3280	6ZTAA13-G4	6/L	13	206	45	78
THLC350	350	380	3100x1492x2030	3180	QSZ13-G2	6/L	13	194	45	78
THLC360	360	390	3228x1492x2106	3110	QSZ13-G7	6/L	13	213	75	78
THLC380	380	420	3257x1492x2175	3180	QSZ13-G5	6/L	13	201	75	78
THLC380	380	400	3257x1492x2175	3180	QSZ13-G3	6/L	13	199	45	78
THLC440	440	480	3257x1492x2175	3300	QSZ13-G11	6/L	13	195	78	86

Standard conditions: Ambient temperature: 40°C; Altitude: 1000m; Relative humidity: 60%

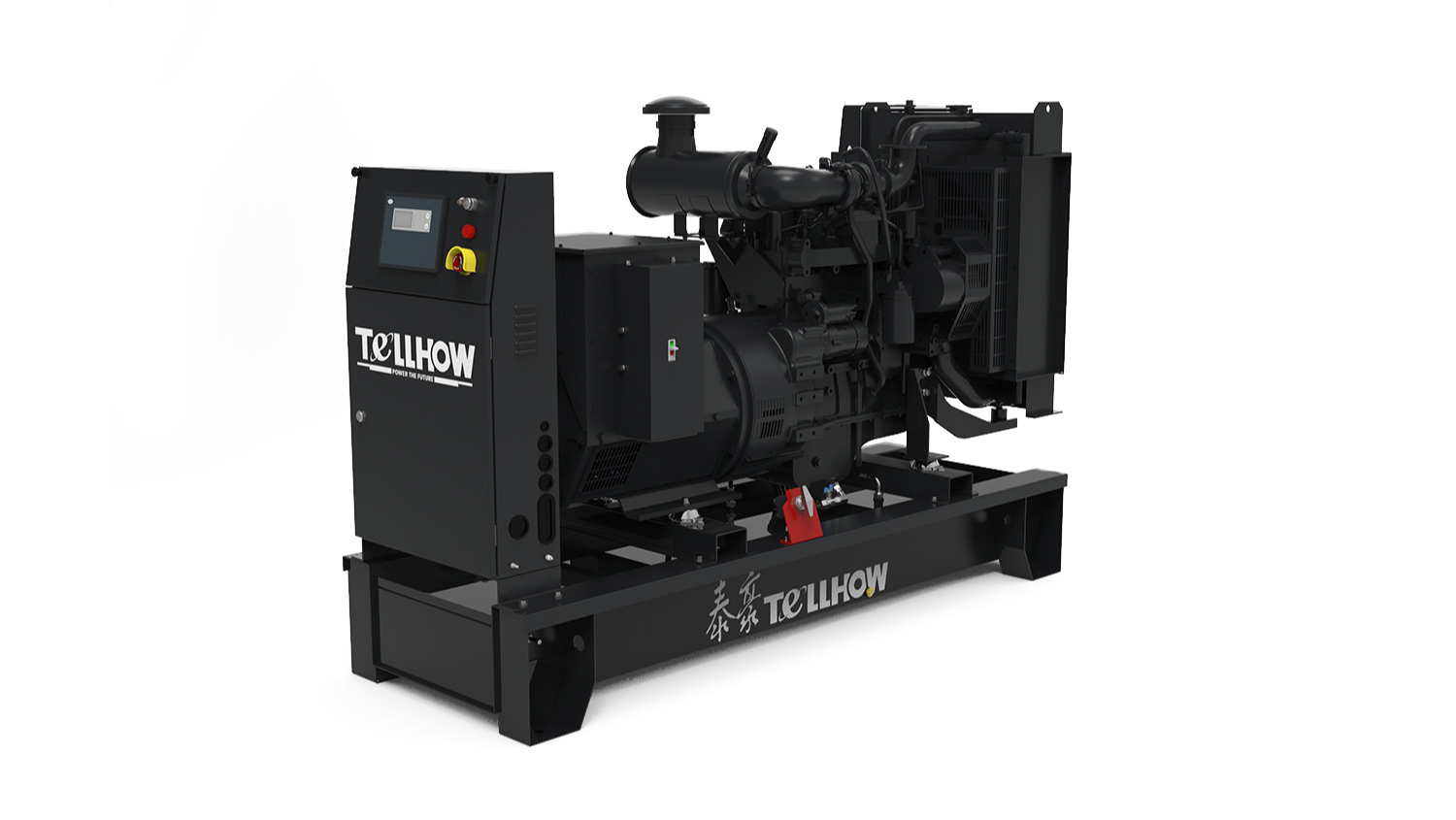

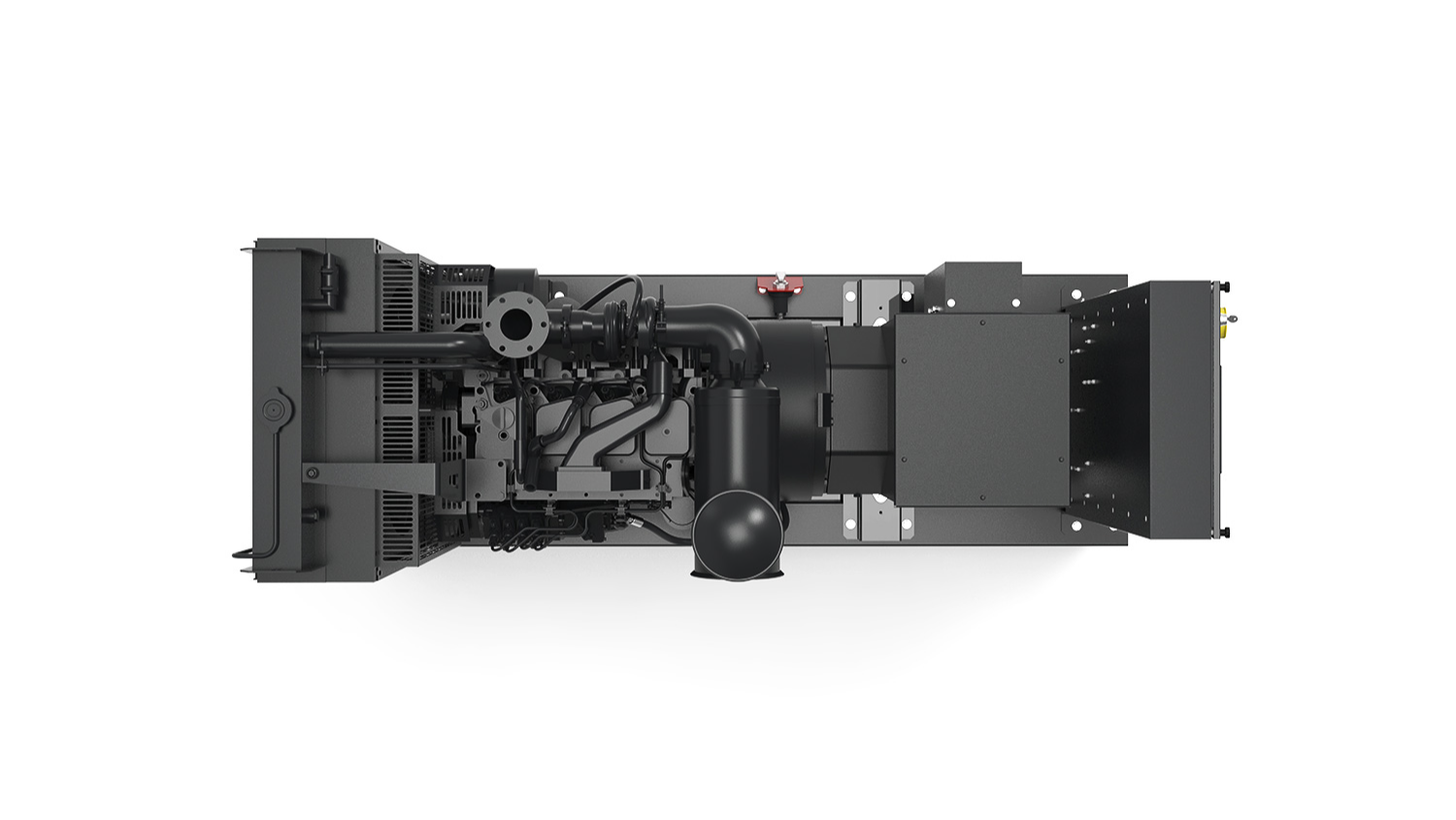

THLC (Dongkang) Series Diesel Generator Set
